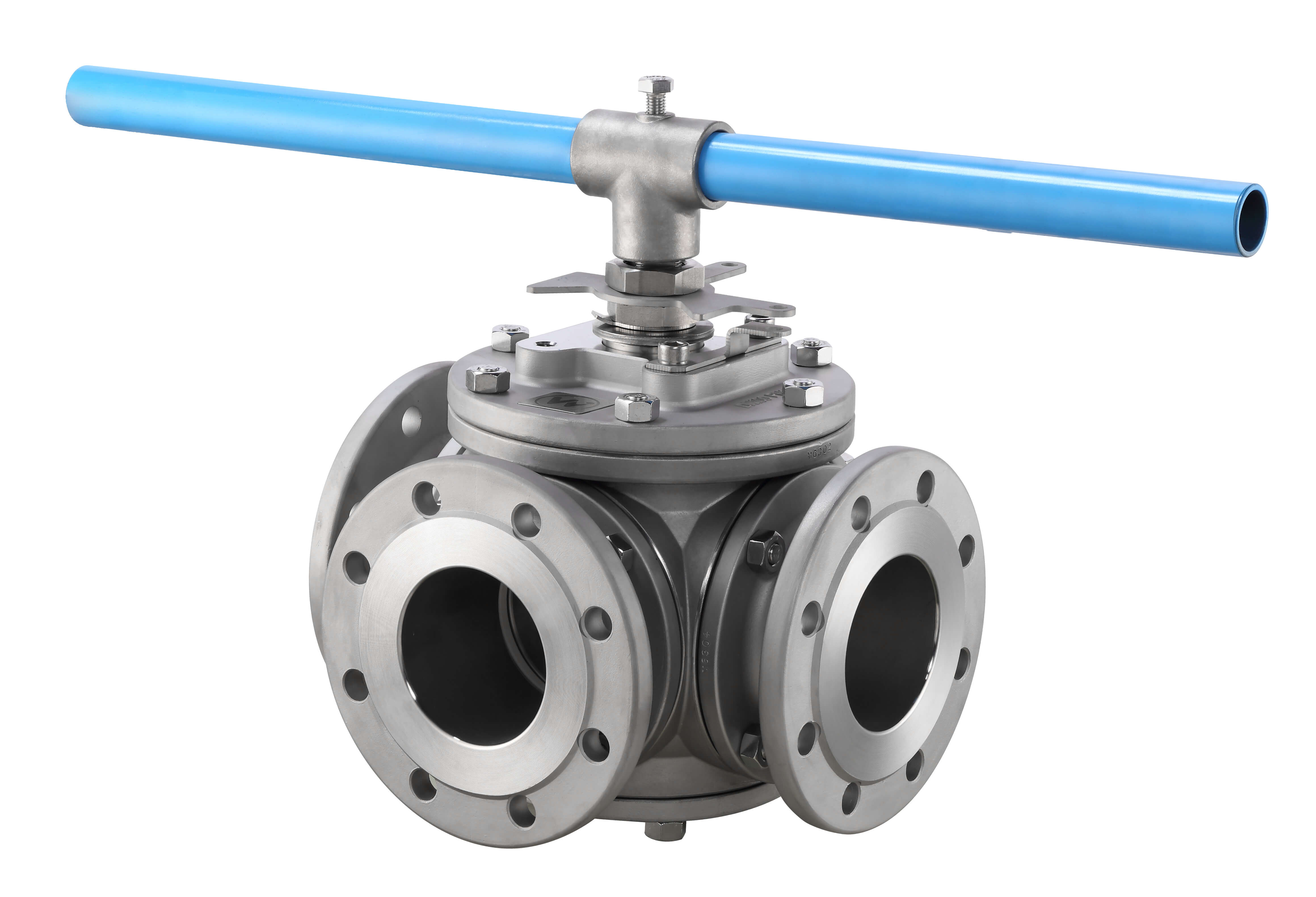

3-Way Flanged Ball Valve

Product Overview

Valwell manufactures a diverse range of multi-port ball valves, including 3-way, 4-way, and 5-way designs. Our standard 3-way ball valves are constructed from stainless steel or carbon steel. According to different customer requirements, we offer 3-way ball valves with various port configurations, including T port and L port.

Design Features

• Full Bore Construction: Ensures maximum flow rates with minimal pressure drop
• Cast Body: Robust durability suitable for demanding industrial environments
• Multiple Port Options: T Port/L Port available
• 4-5 Seats: Provides multi-point sealing assurance for perfect isolation in all flow paths
• Semi-trunnion Ball Design: Combines benefits of floating and trunnion designs for improved sealing performance and reduced wear
• Simple Operation: Effortless direction switching simplifies process flow control
• Robust Engineering: Reliable performance with exceptional service longevity
• Zero Leakage Guarantee: Bubble tight shut-off with 100% leakage testing before shipping
• Acid & Alkali Resistance: Suitable for various corrosive media environments
• ISO 5211 Compatibility: Features indirect mounting pad for easy actuator integration
• Blow-out Proof Stem: Enhanced operational safety
• Anti-static Structure: Prevents static buildup, suitable for flammable environments
• Adjustable Stem Packing: Facilitates in-field maintenance, extending seal life

Optional Configurations

• Fire Safe Design: Complies with critical safety application requirements
• Various Seat Materials: Adaptable to different working temperature conditions
• Drive Options: Available as bare shaft, with lever, gear operator, pneumatic actuator, electric actuator, solenoid valve, positioner, limit switch box, etc.
• Special Alloy Materials: Meeting specific process requirements

Metal Seat Option

Metal seat configuration offers solutions for high working temperatures up to 500°C or applications involving abrasive, sticky flow media.

Specialty Alloy Options

Available in Super Austenitic, Duplex Alloy, Super Duplex Alloy, Hastelloy Alloy, Monel 400, Inconel 600-625, and Titanium Alloy to meet specific customer requirements. (Minimum order quantity: 60kg total product weight)

Specification
